Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End

Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End
Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End

Large Image :  Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End

Product Details:
Place of Origin: GUANGDONG, CHINA
Brand Name: YW
Certification: CE RoHS
Model Number: YW-86538
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 PCS a Month
Detailed Product Description
Item Name: Safety Wire Rope Sling With Snap Hook Snap Hook: 5*25mm
Hook Material: Zinc Alloy Cable Size: 2*300mm Or Customized
Hook Length: 45mm Wire Rope Material: Stainless Steel
Application: LED Light, Art Paitings, Other Objects Need To Hang Up Colors: Nickel/chrome/black/white, Or Customized
High Light:

Lighting Security Wire Rope Sling

,

Art Paitings Wire Rope Sling

,

Snap Hook Wire Rope Sling

Safety Wire Rope Sling With Snap Hook On Both End For Lighting Security Purpose



Specification:



 1. Wire Diameter

 ∅1.0, 1.2, 1.5mm available
 2. Construction  1*7, 7X7, 1*19, 7*19 etc
 3. Material  Stainless steel / Copper / Galvanized
 4. MOQ  1000pcs
 5. Length  1500mm, or as the requirement
 6. Type   Safety wire rope sling with snap hook
 7. Surface treatment  Chrome, Nickel, Black, and White
 8. All parts of the fittings

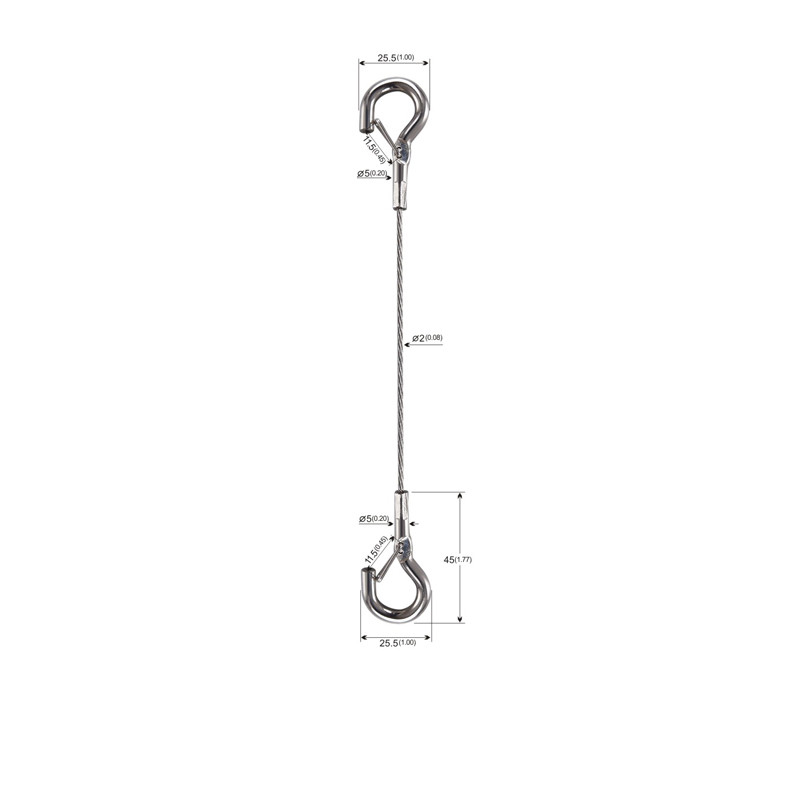

 Hook size:
 Material: zinc alloy
 Size: 5*25mm

 Hook length:45mm
 Steel wire rope:
 Material: 304 Stainless steel wire
 Cable size: Ø2*300mm




 All items can be customized as customer's request.

There are multiple colors optional for the ceiling attachment

and cable grippers.

 9. Lead time  10-15 workdays
 10. Sample

 Free sample available





Description of Safety wire rope sling with snap hook:

What is the Term ‘Wire Rope Safety Factor?

Wire ropes are essential for safety purposes on construction sites and industrial workplaces. They are used to secure and transport extremely heavy pieces of equipment – so they must be strong enough to withstand substantial loads. This is why the wire rope safety factor is crucial.



You may have heard that it is always recommended to use wire ropes or slings with a higher breaking strength than the actual load. For instance, say that you need to move 50,000 lbs. with an overhead crane. You should generally use equipment with a working load limit that is rated for weight at least five times higher – or 250,000 lbs. in this case.



This recommendation is all thanks to the wire rope safety factor. This calculation is designed to help you determine important numbers, such as the minimum breaking strength and the working load limit of a wire rope.



At Elite Sales, we get a lot of questions regarding overhead lifting equipment. But as a wire rope distributor, explaining safety factors is one of the most important topics to discuss.



So, let’s break down what the wire rope safety factor is and what it means for overhead lifting, rigging, and construction purposes.



Safety Factor Meaning

The safety factor is a measurement of how strong of a force a wire rope can withstand before it breaks. It is commonly stated as a ratio, such as 5:1. This means that the wire rope can hold five times their Safe Work Load (SWL) before it will break.



So, if a 5:1 wire rope’s SWL is 10,000 lbs., the safety factor is 50,000 lbs. However, you would never want to place a load near 50,000 lbs. for wire rope safety reasons.



The safety factor rating of a wire rope is the calculation of the Minimum Break Strength (MBS) or the Minimum Breaking Load (MBL) compared to the highest absolute maximum load limit. It is crucial to use a wire rope with a high ratio to account for factors that could influence the weight of the load.



Some of these factors that can impact the strength of the wire rope include:



Speed of operation

Rope attachments

Wind velocity and weather conditions

Acceleration and deceleration

Length of the rope

Uneven loading

Shock loading (unexpected drops)

To account for these factors and ensure that the load does not approach the MBL, it is wise to choose a wire rope with a good safety factor ratio.



Safe Working Load

The Safe Working Load (SWL) is a measurement that is required by law to be clearly marked on all lifting devices – including hoists, lifting machines, and tackles. However, this is not visibly listed on wire ropes, so it is important to understand what this term means and how to calculate it.



The way to determine the SWL is by squaring the diameter of the rope and multiplying it by 8 kgs. Thankfully, most wire rope distributors will present this calculation for you.



The safe working load will change depending on the diameter of the wire rope and its weight per foot. Of course, the smaller the wire rope is, the lower its SWL will be. The SWL also changes depending on the safety factor ratio.





The swaged safety wire rope sling is essential for safety purposes on lighting, construction sites, and industrial workplaces. They are used to secure light or heavy pieces of a lighting fixture or other equipment.



The swaged safety wire rope sling is usually used on LED Lights, Art paintings, display billboards, and other items which has to secure it from high hanging ceilings. It is a second security to prevent the items which are on the high ceilings from falling down under special or unexpected circumstances









Lighting Security Purpose Safety Wire Rope Sling With Snap Hook On Both End 0





Shipping & Packing:



1. Air or Express shipping of Dual cable gripper:

We have our own Shipping forwarder who can deal with air shipping and international express shipping; such as DHL, UPS, FedEx, TNT, etc

Normally choose this when the quantities are small and the cargo is not very heavy.



2. Sea shipping of Dual cable gripper:

For large and heavy items, We can support delivery via sea shipping.
