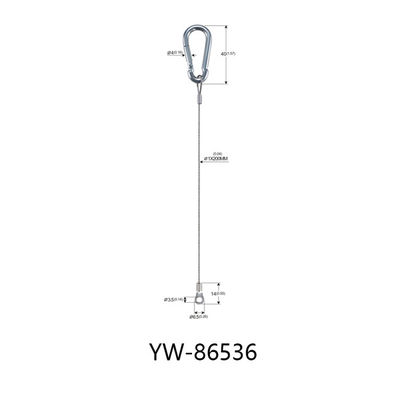

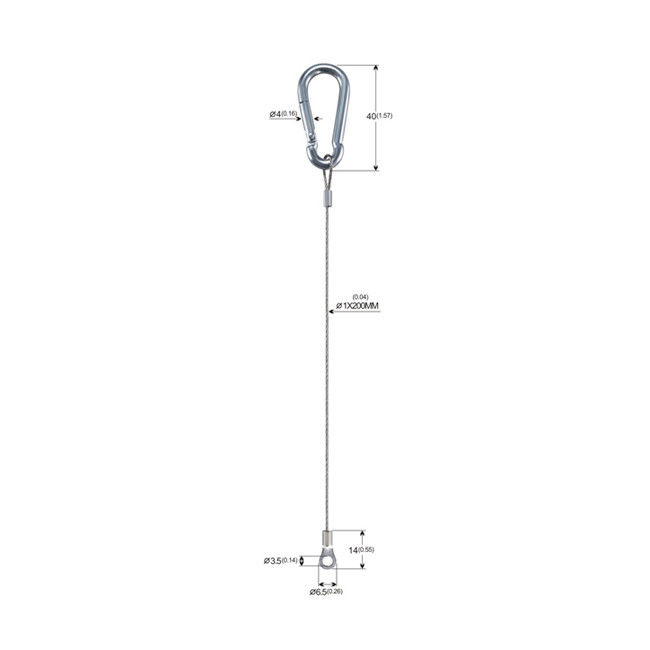

Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536

Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536
Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536 Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536 Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536 Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536 Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536 Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536

Large Image :  Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536

Product Details:
Place of Origin: GUANGDONG, CHINA
Brand Name: YW
Certification: CE RoHS
Model Number: YW-86536
Payment & Shipping Terms:
Minimum Order Quantity: 2000 PCS
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 2,000,000 PCS a Month
Detailed Product Description
Item Name: YW-86536 Cable Material: Stainless Steel, Galvanized Steel
Part Size: 14mm Eyelet Material: Brass / Stainless Steel / Steel
Diameter: 1mm Cable Length: Any Length Available
Length: 200mm Sample: Free Sample Available For Existing Dimension
Application: Light Fixture, Hanging Systems, Picture Hanging MOQ: 2000pcs
Lead Time: 8-15 Business Days
High Light:

Steel Wire Rope Cable Lanyard

,

Steel Lanyard Cable With Stamped Eye

,

Steel Lanyard Cable With Snap Hooks

Steel Wire Rope Cable Lanyard Loop And Small Size Stamped Eye And Snap Hooks YW86536



Specification:



 Material   Stainless steel  Type   Lanyard button
 MOQ   2000 PCS   Construction   1x7;7X7;1x19 etc
 Wire Diameter   ∅1mm   Carton Size   35*25*18cm
 Wire Length  Customized  Lead Time   8-15 workdays
 Break load   10kg  Payment Terms

  T/T,Western Union,Paypal





Features:



1. A safety cable is made of high-quality material, it can use for a long time.

2. Safety cables are suitable for various products of stage light: moving head light, par light.

3. Safety clamp lighting cable wires can connect different stage lights in parties, weddings, and other festivals.

4. Quick and easy to attach and remove.

5. Safe, shielding, and prevent transmission interference.




Description:



* 7×7: Six 1×7 outside strands are cabled around a 1×7 strand center. This is the most standard cable construction. This produces a very flexible cable with good cycle life and excellent breaking strength

* 1×7: Six wires are laid around one center wire. This strand is more flexible than a 1×3. This construction is commonly used for push-pull applications and for conductive needs with low flexibility.

* 1×19: Twelve wires are laid around a 1×7 center. This construction is used for more flexible needs than a 1×7 in push-pull and conductive applications. A 1×19 strand is almost as high a breaking strength as a 1×7 strand with the same diameter.

* 7×19: Six 1×19 strands are cabled around a 1×19 center strand. This is the most flexible standard construction for cable. This cable gives you a high cycle life but has a lower breaking strength and is more costly than a 7×7 cable.





How to choose material:


* Galvanized cables and wire ropes are a great economical choice. They offer corrosion resistance at an affordable price. Galvanized coating is available in most strands, cables, and wire ropes.

* Stainless Steel Type 304 is the most widely used of the stainless steel offerings. It offers good corrosion resistance and breaking strengths comparable to galvanized cable.

* Nylon Coated Cable: Nylon is suitable for applications involving pulleys, excellent coating for exercise equipment.



Application:



* Material Handling (hanging support lanyards, pulley cables)

* Specialized vehicles (security stainless steel lanyards for release pins, lid restraints)

* Lawn and garden equipment (security lanyards for release pins, lid restraints)

* Seats (seat restraint lanyard)

* Tailgates and Doors (latch lanyard, support lanyard, door restraint)

* Used for the lighting fixture protection.





Caution:


Rotate the reel periodically during long periods of storage, particularly in warm environments, to prevent migration of the lubricant from the rope.

Never store wire rope in areas subject to elevated temperatures as this may seriously affect its future performance. In extreme cases, its original as-manufactured strength may be severely reduced rendering it unfit for safe use.

Ensure that the rope does not make any direct contact with the floor and that there is a flow of air under the reel.

Failure to do so may result in the rope becoming contaminated with foreign matter and start the onset of corrosion before the rope is even put to work.
