Product Details:
Payment & Shipping Terms:
|
Wire Material: | 304 Stainless Steel /Galvanized Steel Wire | Wire Thickness: | Ø1.2mm |
---|---|---|---|
Wire Length: | Customize | Dia Cast Size: | 6*8mm |
Application: | Use For Hanging Kit | Others: | OEM/ODM Acceptable |
Highlight: | wire rope assemblies,wire rope fittings |
Zinc Die-Cast Terminal Wire Rope Sling , SS 304 Wire rope assemblies
We utilize stainless steel aircraft cable. Cables are supplied with a terminal at one end,
allowing the cable to be held securely at the suspension point.
Aircraft Cables, also known as wire ropes, have diameters ranging from 1.0 to 3.0m and are
composed of six steel strands wound around a seventh steel stranded core.
This wire rope sling is a part of the suspension system.

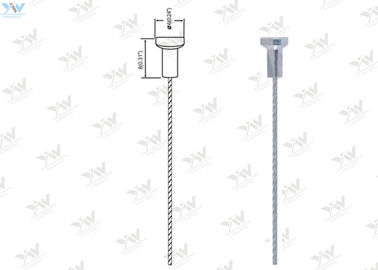

7X7 304 Stainless Steel Wire,with a end of dia casting,

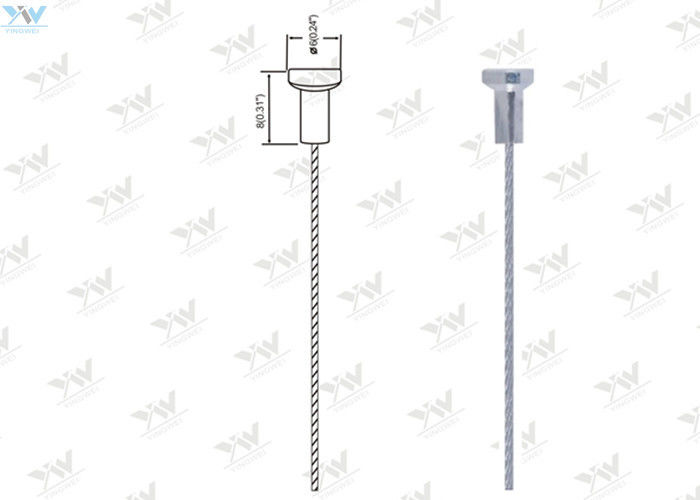

The dia casting size is Ø6*8mm,Used for applications where you have a hight ceiling,
curved or slope ceiling or difficult installation.
Description
1. Item Name | Loop End Wire Rope Sling / Wire Rope Assemblies |
2. Material | 304 Stainless Steel Wire |
3. Dia Cast Size | 10*6.5mm |
4. Cable Diameter and Length | Ø1.2*1000mm;Or Customize |
5. Finishing Color | Silver |
6. Application |
Used for Hanging Kit,Suspension System etc. |
7. Safe Working Load | 20KG(For reference only) |
8. Content | 1*Stainless Steel wire with Dia Cast terminal loop end |
9. End Fittings and Hardware Available |
1. Custom Machined End Fittings |
This stranded steel core adds strength and crush-resistance to the cable. Aircraft cable is classified by the number of strands in the cable multiplied by the number of wires in each strand. For example, the notation 7×7 indicates that the cable has seven strands made up of seven wires in each strand. Similarly, the notation 7×19 indicates that the cable has seven strands made up of nineteen wires in each strand. The greater the number of wires, the greater the flexibly of the cable. We are offering cables 7×7 or 7×19 galvanized or stainless steel (304 or 316) medium-to-high tensile strength aircraft cable.
Cable Sleeves & Terminals
Sleeves and terminals (also known as stop-sleeves, stops, crimps and swages) are molded or crimped to the end of a cable, allowing the cable to be captured by a cable coupler or other non-mechanical holder which attaches the cable to a structure or fixture.

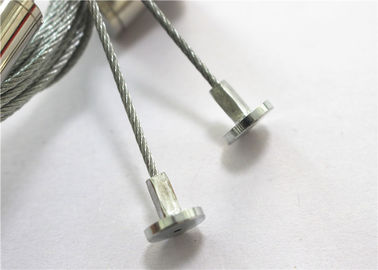

Zinc Die-Cast Terminals are molded to a cable end that has been “bird-caged”, allowing the molten zinc to adhere to each individual wire. This technology has proven itself in the automotive and aviation industries. We offer a comprehensive range of Zinc Die-Cast terminals.
Swaged Terminals can be made of steel, stainless steel, aluminum or copper and come in a variety of shapes and sizes.
