Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope

Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope
Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope

Large Image :  Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope

Product Details:
Place of Origin: CHINA
Brand Name: YW
Certification: CE
Model Number: YW-86437
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: $1.35-1.55/pcs
Packaging Details: PP bag with each item, outer carton packing
Delivery Time: 10-15days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs/week
Detailed Product Description
Material Of Cable: Galvanized, 304ss, Or 316 Ss Optional Hook Material: Steel
Others: OEM/ODM Acceptable Colors: Nickel/chrome/black/white, Or Customized
Suitable For: Hanging Light Fixtures, Plants, Decorations Wire Gripper Material: Brass
Ceiling Attachment: Ø18*26mm Cable Grippre: Ø9*26mm
Spring Spiral: Ø30*51mm Cable Length: 2meter Or Customized
Wire Diameter: 1.5mm
Highlight:

Cable grippers Acoustic panel hanging system

,

Adjustable Acoustic panel hanging system

,

1.5mm Rope Acoustic Panel Hanging System

Acoustic panel hanging system with adjustable cable grippers 1.5mm wire rope

Specification:



1. Wire Diameter ∅1.0, 1.2, 1.5mm available
2. Construction 1*7, 7X7, 1*19, 7*19 etc
3. Material Stainless steel / Copper / Galvanized
4. MOQ 1000pcs
5. Length 2000mm, or as the requirement
6. Type Acoustic panel hanging system
7. Surface treatment Chrome, Nickel, Black, and White
8. All parts of the fittings

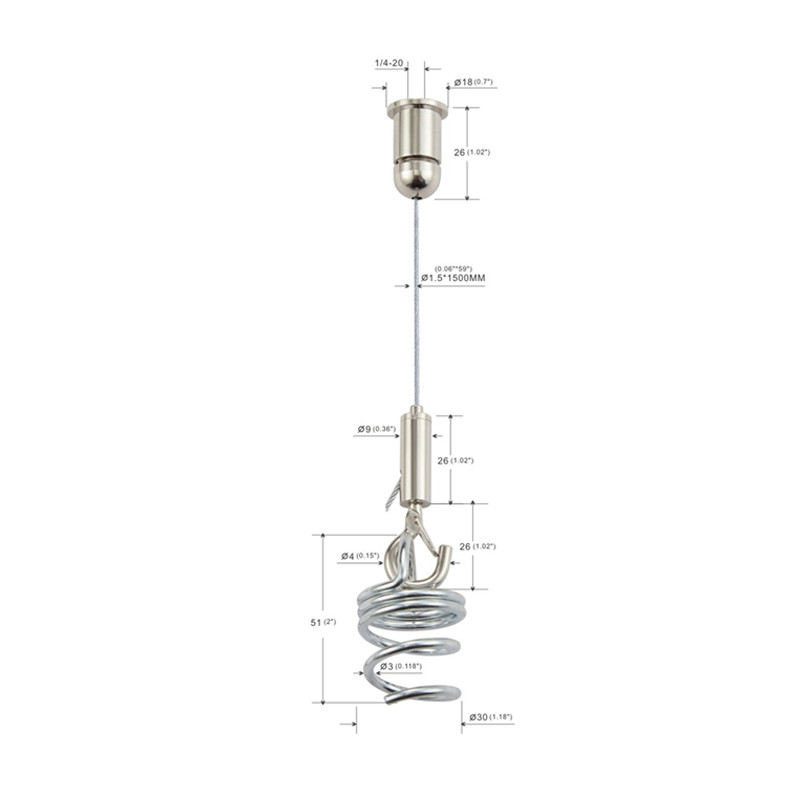

Ceiling Gripper:
Material: Brass(color optional)
Size: Ø18*26mm
Steel wire rope:
Material: 304 Stainless steel wire
Cable size: Ø1.5*2000mm

Cable gripper: Ø9*26mm

Spring size: Ø30*51mm

All items can be customized as customer's request.

There are multiple colors optional for the ceiling attachment

and cable grippers.

9. Lead time 10-15 workdays
10. Sample Free sample available





Description



This Heavy duty hanging kit usually uses for LED high bay lights. Each high bay light will need 2pcs or 4pcs of the hanging kits to hang it up on the ceiling.

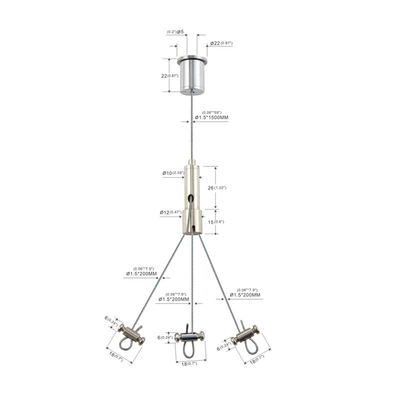

The LED high bay lights hanging kits consisted of Four main parts: Ceiling Attachments, Hanging cable(Have main wire and Y wire rope. Material has stainless steel and galvanized steel), cable grippers, and the plates with stopper.

The ceiling attachment is used to attach on the ceiling to fix one end of the wire rope.

Use the anchor screw and self-tapping screw to fix the ceiling gripper bottom of the ceiling.



The function of cable gripper is used to fix and adjust the position of the cable. Depress the plunger of the cable gripper and insert the cable through, then release the plunger, and the cable will be locked in. we can use this to find the correct position for the cable. On the bottom of the gripper, it can get the Y shape wire rope through to hold the iron plates on both sides of the wire rope.



The Iron plates with stoppers for hanging objects prevented them to slipped out from the back of the lights



The steel wire cable is made of 304 or 316 stainless steel or galvanized steel wire. All of them can be customized for length and color.







This Heavy duty LED high bay light hanging kit is easy to install, It is no tools required.





Attention:



1. The ceiling fixing must be installed correctly and by a qualified fitter into a reliable material to achieve the working load

2. Make sure to use a reliable and secure fixing for the object being suspended

3. Not to be used outside

4. Make sure the wire has no defects before use. Use only for static loads

5. A minimum of two suspensions are recommended per item being suspended

6. Always remove or support the load before making any adjustments

7. Supplied in ready-to-use kits

8. Available with a range of connector types and thread sizes

9. Extensive ceiling fixing options available to suit most substrates









Confused about how to select your art hanging system?


1. Choose a Suspension Point
Your system can be ceiling or wall-mounted, with applications hanging freely or tensioned between two fixed points;


2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters and lengths ranging from 1.0mm~3.0mm;


3. Select a Gripper
A range of designs and options, all with self-gripping technology, offer a secure and elegant solution for any fine art installation.



The Self-Gripping Sign and Panel Support Set includes both upper and lower self-gripping supports that make adjusting the height of your sign or panel quick and simple.

The system is highly secure because the set screw of the lower support goes directly through your sign or panel and then is secured with a nut.





Application



Lighting, Machinery, Medical, Security, Sporting Goods, Toys, Window, Lawn & garden. When designing a cable assembly, a number of factors need to be considered such as workload, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter, the greater the workload capacity and the less flexible it will be.





Acoustic Panel Hanging System With Adjustable Cable Grippers 1.5mm Wire Rope 0





Shipping & Packing:



1. Air or Express shipping of Dual cable gripper:

We have our own Shipping forwarder who can deal with air shipping and international express shipping; such as DHL, UPS, FedEx, TNT, etc

Usually, choose this when the quantities are small and the cargo is not very heavy.



2. Sea shipping of Dual cable gripper:

For large and heavy items, We can support delivery via sea shipping.
