Make The Installation Easy And Flexible!
|
Product Details:
Payment & Shipping Terms:
|

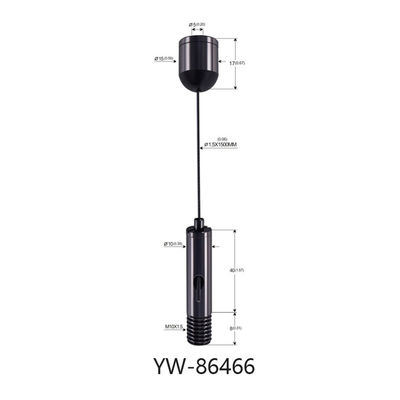

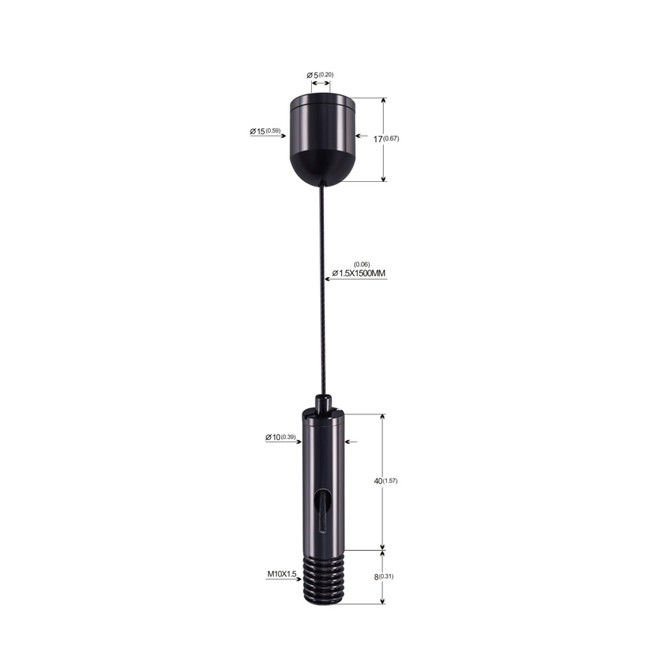

| Item Name: | YW-86466 | Gripper Size: | 10*40mm |
|---|---|---|---|
| Lead Time: | 8-15 Business Days | Wire Length: | 1500mm, Customized |
| Wire Diameter: | 1.5mm, Customized | Construction Of Steel: | 1x7;7x7;1x19;7x19 |
| Material: | Brass / Stainless Steel | MOQ: | 1000pcs |
| Sample: | Free Sample Available For Existing Dimension | ||
| High Light: | Art Wire Hanging Display Systems,Black Plated Art Hanging Systems,1500mm Art Cable Hanging System |
||
|
1.Main Wire Diameter |
∅1.5mm(0.06”) |
| 2.Construction | 1*7,7X7,1*19,7*19 etc |
| 3.Material | Stainless steel / Copper / Galvanized |
| 4.MOQ | 1000pcs |
| 5.Length | 1500mm, as the requirement |
| 6.Type | Single leg |
| 7.Surface treatment | Chrome, Nickel, Black, White, and Silver |
| 8.End parts of fittings | Eyelets terminals Screws Clips Hooks All kinds of grippers Ceiling attachment locking screws A large selection of end fittings, including eye bolts, links, springs, hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped eye, handles, etc |
| 9.Lead time | 10-15 workdays if there were enough material in stock |
| 10.Sample |
Free sample available if all of the dimensions same as our existing one |
1. Our adjustable connectors easily adapt to the most common applications on the market, providing a suspension system that is easy to install and almost invisible when it is set up. If you have a project that involves unusually sloped, curved, or high ceilings, our track suspension systems may be the solution for you. It is affordable, flexible, and easy to install.
2. Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.
3. To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.
4. The 3 balls gripping mechanism is spring-loaded and allows the gripper to move freely up the cable. It cannot move down unless the plunger is depressed. While there is no weight at all on the gripper, the plunger cannot be depressed
Complementary - aesthetic design.
Easy installation that does not require a professional.
Can be pre-installed to channel using pre-fitted washer/nut or using retention clip reducing time working at height.
No tools needed to adjust cable length, up or down, down or up – as often as you like.
1.attachment: attachment are used to help to fit for the ceilings, walls, or floor
2.cable: stainless and galvanized steel cables are available in various
3.grippers: compact designed grippers allow swift installation and instant
4.accessories: a lot of accessories, such as pull switches, cable clips and
Aircraft cable is available in galvanized steel and Stainless Steel,
and is also offered in Stainless Steel Type 316.
Our aircraft cable mainly comes in 7x7 strand,
1x7 strand, 1 x19 strand, and 7x19 strand is available too if required
All in galvanized steel or stainless steel.
Aircraft cable sizes range from 1.0mm to 3.0, with different breaking strengths (tensile strengths).
A. Direction of cable and gripper must be in a straight line.
B. The cable must be inserted all the way through the gripper and protrude at least 25 mm from bottom
C.The angle of the cable must be in the same direction as the gripper joint. Otherwise the joint may break.
