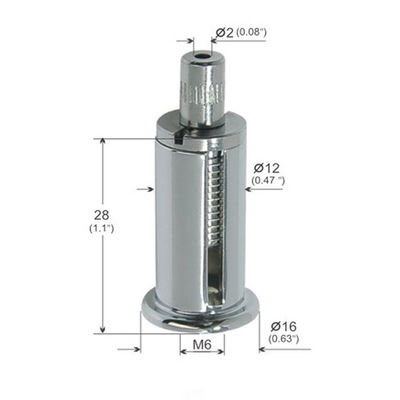

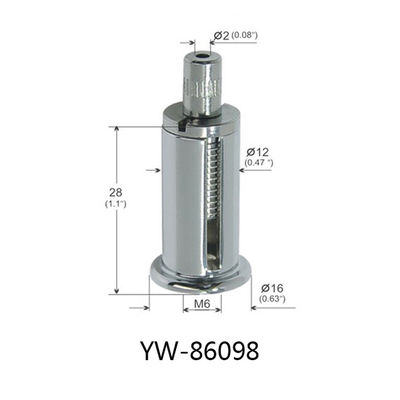

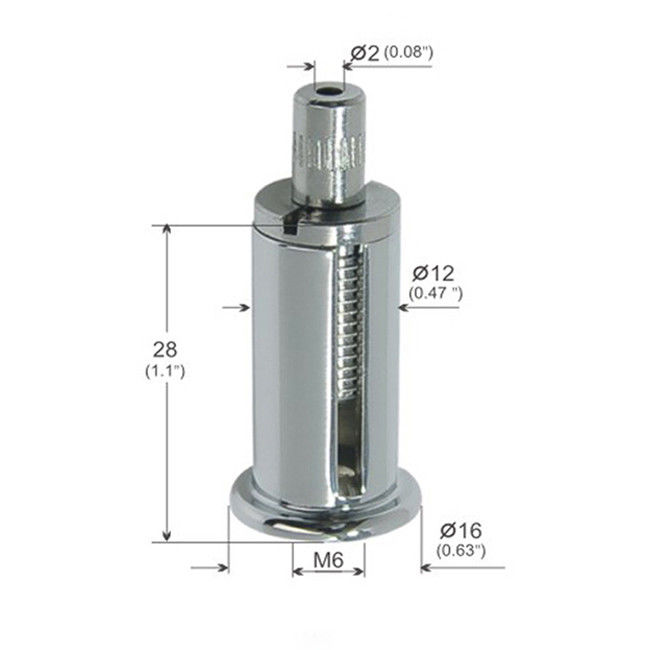

Hanging Lights Cable Grippers Adjustable With Female Thread YW86098

OEM Adjustable Cable Gripper With Female Thread For Hanging Lights YW86098

Quick Details:

Descriptions:

*  Body: holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
* Locking spheres: 3 spheres arranged in a triangular pattern that will hold the cable in place via pressure.
* Wedge or bush: transfers the pressure of the spring to the spheres.

* Spring: Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.

Advantages:


1.The aircraft cable grippers offer a secure and elegant solution for any fine art installation, as well as Lighting Products,

Signs, Displays, Graphics and many other items;

2. Radically reducing installation time and eliminating human error;

3. Easy to adjust cable length, easy to release.

4. Low cost and competitively priced for use in industrial and architectural lighting applications;

5. Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures;

6. Supplied as Gripper Only or Gripper with Cables in different lengths.

It is perfect for Hanging Graphic Displays, Suspend Signage,

Lighting Systems, Suspended Fixtures, and other objects.
It can be Supplied as Gripper Only or Gripper with Cables of different lengths.

Application:


* Acoustics, Display, Exhibition, Room divider, Decoration…Everything that hangs from the ceiling or the wall should use our Suspension Systems.
* Cable gripper that allows adjusting the height of a fixture without utilizing tools
* Compact designed grippers allow swift installation and instant adjustment.
* Attachments are used to fix the cables to ceilings, walls, or floors.
* Stainless steel and zinc-plated cables are available in various dimensions and lengths.

How It Works

Aircraft Cable Grippers are sophisticated in design but simple to use:

• Insert the cable into the plunger and slide the gripper to the desired position.
• Where it stops it locks. To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.
• The 3--ball gripping mechanism is spring-loaded and allows the gripper to move freely up the cable. It cannot move down unless the plunger is depressed.
• While there is no weight at all on the gripper, the plunger cannot be depressed.
• An optional “safety nut” or “safety cap” can be added to completely lock the mechanism in both directions. The greater the weight, the stronger it grips.
