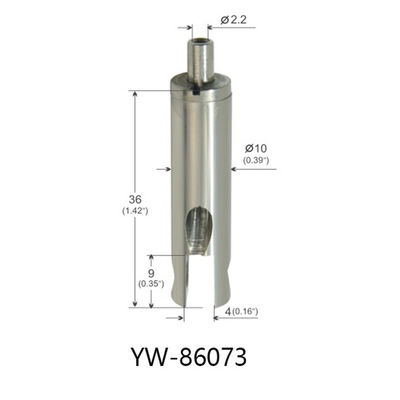

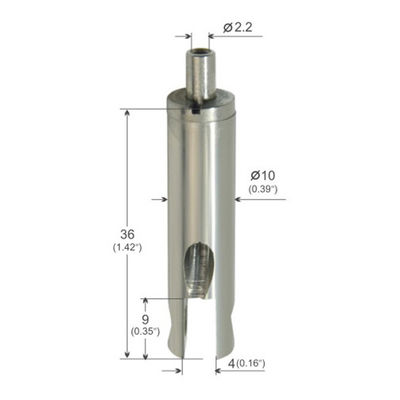

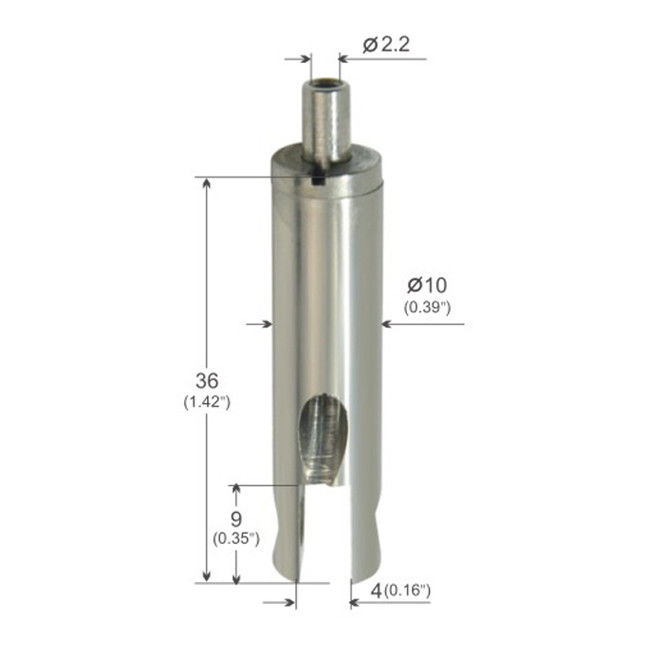

Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073

Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073
Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073 Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073 Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073 Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073 Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073 Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073

Large Image :  Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073

Product Details:

Place of Origin: GUANGDONG, CHINA
Brand Name: YW
Certification: CE RoHS
Model Number: YW-86073

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiable
Packaging Details: 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 2,000,000 PCS a Month
Detailed Product Description
Brand Name: Yingwei Production Name: YW-86073
Size: 10*36mm Surface Treatment: Nickel / Chrome / Satin Silver
Type: Adjustable Break Load: 80kg
Material: Brass / Stainless Steel Rec. Wire: ∅1-2mm
Thread Size: None MOQ: 500pcs
High Light:

Nickel Plated Brass Wire Cable Grippers

,

Steel Wire Gripper With Groove

,

Security Cable Gripper Ceiling Mount

Steel Wire Lock Wire Gripper Nickel Brass With Groove And Side Exit YW86073



Quick Details:



 Material  Copper / Stainless steel  Type  Side exit
 Suit for wire dia.  ∅1 - ∅2 mm  Size  ∅ 10*36mm
 Surface treatment  Satin Silver/ Chrome, etc.  MOQ  500pcs
 Breaking load  80kg  Sample  Free sample available, customer pay the express freight
 Delivery time  8-15 workdays  Application  Billboards, Led light, Display




Advantages:


Our Standard Grippers are able to mount directly to walls, floors, and ceilings. This product is made from nickel-plated brass and features a pressure release mechanism to build a strong display system.

This product is made from nickel-plated brass and features a safety lock to provide extra security.





Descriptions:


Within each cable, the gripper is a plunger that a cable slides through. There are three balls that surround the outside diameter of the cable as it passes through the gripper. When weight is applied to the gripper when mounted, the tension forces the balls to grab the cable in a pinching movement. In normal operation the more the tension, the more the gripping. Some grippers come with a safety nut that locks the movement in both directions eliminating the potential for a release if the plunger is accidentally depressed by an end-user.





Application:


Used extensively throughout the building, architectural, lighting, and agricultural sectors, suspension Kits with adjustable cable grippers are the perfect alternative to the traditional threaded rod solution and are engineered with simplicity in mind, allowing for significant savings in time and labor during installation.
With our many Cable Gripper styles you can hang anything: Drop Ceilings, Light Fixture Pendants, Signs, Displays, Shelves, Picture Frames, and more.




Installation



While pressing down the button on the top of the gripper, simply thread the cable through the gripper, and release the button when at the desired length. Push back the Safety Lock, insert your frame hanger, then release the Safety Lock. Step back and admire your marvelous Hanging System!





Materials & Finishes:



Cable Grippers are made of nickel&Chrome-plated brass with a few exceptions. Internal mechanisms are comprised of brass and stainless steel. Grippers are also available in a black zinc finish,satin-chrome. Other finishes are available upon request. Some of the other items are made of anodized aluminum and come in several colors.


 Security Cable Gripper Ceiling Mount With Groove And Side Exit YW86073 0
