Power Feed Steel Cable Suspended Wire Lighting Kit For Aluminium Profiles

China Power Feed Steel Cable Suspended Wire Lighting Kit For Aluminium Profiles supplier
Power Feed Steel Cable Suspended Wire Lighting Kit For Aluminium Profiles supplier Power Feed Steel Cable Suspended Wire Lighting Kit For Aluminium Profiles supplier

Large Image :  Power Feed Steel Cable Suspended Wire Lighting Kit For Aluminium Profiles

Product Details:

Place of Origin: Dongguan,China
Brand Name: YW
Model Number: YW-86435

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Price: Negotiable
Packaging Details: Export Carton-35*25*18cm
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Cable Gripper Material: Brass Color: Chrome,or Customize
Wire Thickness: Ø1.2mm Main Cable Length: 1000mm,or Customize
Wire Material: 304 Stainless Steel Wire With Application: To Hang Panel Lights,Linear Lights,Aluminium Profiles Etc

Power Feed LED Panel Suspension Kit Steel Cable Suspension Kit For Aluminium Profiles

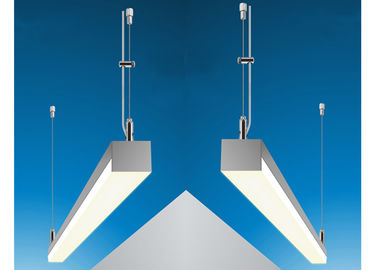

This suspension Kit is used with Aluminium profile to create stunning suspended

light displays. Create your own linear light bar.



Lighting suspension kits deliver complete solutions for all lighting applications. Offering a sleek, professional and discreet finish without compromising on strength, the beauty of the system is

n the ease and efficiency of installation.


Supplied in ready-to-use kits with your choice of end fixing and cable length, we provide a

complete off-site solution, catered to the needs of your project. Whether you're suspending panel,

strip or high bay lighting, we have a range of products to suit all lighting applications.





With the steel cable suspension kit the aluminium profiles

can be suspended infinitely variable from the ceiling.



One kit consists of:

  • 1x cable gripper (infinitely variable suspension possible) with M10  thread
  • 1x ceiling attachment
  • 1x steel cable 1000mm
  • 1x power cable holder
  • 1x screw with plastic screw anchor

This Suspension Kit features  a cable holder for electric cable.

It's best for suspend the linear light fixtures from the ceiling.





PART 1

CABLE LENGTH

&DIAMETER

PART 2

CABLE GRIPPER

PART 3

CEILING ATTACHMENT

D:Ø1.2MM

L:39.3″ – (1000MM)

Size:Ø12mm * 30mm Size:Ø12mm * 26mm





Description



1. Material:Brass+Stainless Steel Wire



2. Size:Same as the drawing



3. Cable Diameter and Length:Ø1.2*1000mm;Or Customize



4. Finishing Color:Chrome;Or Customize



5. Application:



Stainless steel wire suspension kits for use with Aluminium Profiles and many other products,

Allow the panel to be hung from a ceiling. Ideal for situations when recessed mounting

is not possible, or for an ultra modern appearance.



6. Safe Working Load:20KG(Fore reference only)







Advantages:



· Quick – up to 6 times faster than traditional suspension systems



· Safe – can be pre-installed to channel using pre-fitted washer/nut or using

retention clip reducing time working at height



· Easy – integral ergonomically designed release button allows for simple adjustment



· Secure – button acts as a locking screw and indicator clearly highlights the wire is

locked in position for ultimate security



· Versatile – variety of foot attachments available to suit applications





IMPORTANT:



· It is essential to check that the top ceiling fixings are strong enough to take the

  weight of the items being displayed, while allowing for the tension in the cables.



· Make sure to use a reliable and secure fixing for the object being suspended

· Not to be used outside



· The ceiling fixing must be installed correctly and by a qualified fitter into a reliable

  material to achieve the working load



· Make sure the wire has no defects before use. Use only for static loads



· A minimum of two suspensions are recommended per item being suspended



· Always remove or support the load before making any adjustments









Power Feed Steel Cable Suspended Wire Lighting Kit For Aluminium Profiles
