Ø1.5 * 3000 MM SS Wire Light Hanging Kit Adjustable For Linear Light Suspension

China Ø1.5 * 3000 MM SS Wire Light Hanging Kit Adjustable For Linear Light Suspension supplier
Ø1.5 * 3000 MM SS Wire Light Hanging Kit Adjustable For Linear Light Suspension supplier Ø1.5 * 3000 MM SS Wire Light Hanging Kit Adjustable For Linear Light Suspension supplier

Large Image :  Ø1.5 * 3000 MM SS Wire Light Hanging Kit Adjustable For Linear Light Suspension

Product Details:

Place of Origin: Dongguan,China
Brand Name: YW
Model Number: YW-86042

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Price: Negotiable
Packaging Details: Export Carton-35*25*18cm
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Cable Gripper Material: Brass Color: Nickel,or Customize
Wire Thickness: Ø1.5mm Main Cable Length: 3000mm,or Customize
Wire Material: 304 Stainless Steel Wire Application: To Hang Panel Lights,Linear Lights,LED Sign,Billboard Etc

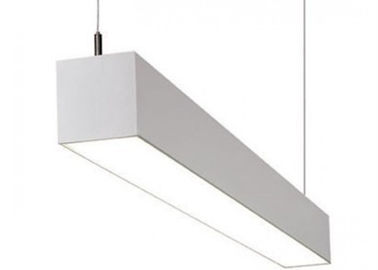

Ø1.5 * 3000MM SS Wire Light Hanging Kit Adjustable for Linear Light Suspension



The LED Panels can be suspended or surfaced mounted,

Stainless steel wire suspension kit for use with LED Panels,

and many other ultra slim LED panel lights allowing the panel to be hung from a ceiling.





Description



1. Material:Brass+Stainless Steel Wire



2. Size:Same as the drawing



3. Cable Diameter and Length:Ø1.5*3000mm;Or Customize



4. Finishing Color:Nickel;Or Customize



5. Application:These adjustable sign hanger kits can also be used in art installations,

in shop window displays,as well as in industrial applications such as suspending safety signs.



6. Safe Working Load:30KG(Fore reference only)



7. Content:

One Nickel Cable Gripper,adjust the cable length;

One Ceiling attachment fixed to ceiling;

One 304 Stainless Steel wire with diecast end



PART 1

CABLE LENGTH

&DIAMETER

PART 2

CEILING ATTACHMENT

PART 3

CABLE GRIPPER

D:Ø0.06″ - (1.2MM)

L:118.11″ – (3000MM)

Size:Ø0.59″ * 0.59″

       (Ø15*15MM)

Size:Ø0.39″ * 1.85″

        (Ø10*47mm)





IMPORTANT: It is essential to check that the top ceiling fixings are strong enough to take the

weight of the items being displayed, while allowing for the tension in the cables.





This LED Panel suspension kit contains the comopents to suspend as following:



1. 304 Stainless Steel Wire;

Size:Ø1.5*3000mm



2. Cable Gripper made from brass material with Nickel plated;

Size:Ø10*47mm

With a safety lock and screw nut



3. Ceiling Attachment;

Material:Brass plated in Nickel

Size:Ø15*15mm



Ideal for situations when recessed mounting is not possible, or for an ultra modern appearance.

This suspension kit is designed for the LED panels with dimensions

of 600mm x 600mm and 625mm x 625mm.

The 3000mm steel cable is adjustable in height and allows for

widest variety when suspending LED panels from ceilings.





Suspension kits with adjustable gripper and Stainless Steel Wire,

Can be used to hang Linear Lights,LED Panels and many other products,

Offer the perfect solution for the suspension of the fixtures.


Stainless steel wire suspension kits for use with LED Panels and many other products,

Allow the panel to be hung from a ceiling. Ideal for situations when recessed mounting

is not possible, or for an ultra modern appearance.



One end of the suspension kit screws to the ceiling, the other side attached to the panel.

You can adjust the cable length by the gripper no tools needed,

Easy to adjust cable length. Easy to release.





Ø1.5 * 3000 MM SS Wire Light Hanging Kit Adjustable For Linear Light Suspension
