Satin Color Lighting Wire Suspension Systems For Hanging Panel Lights

China Satin Color Lighting Wire Suspension Systems For Hanging Panel Lights supplier

Large Image :  Satin Color Lighting Wire Suspension Systems For Hanging Panel Lights

Product Details:

Place of Origin: Dongguan,China
Brand Name: YW
Model Number: YW-86014

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Price: Negotiable
Packaging Details: Export Carton-35*25*18cm
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Ceiling Attachemt+Cable Gripper Material: Brass Color: Satin/Silver,or Customize
Wire Thickness: Ø1.2mm Main Cable Length: 2000mm,or Customize
Wire Material: 304 Stainless Steel Wire/Galvanized Steel Wire Application: To Hang Panel Lights,Linear Lights,LED Sign,Billboard Etc

Satin Color Adjustable LED Panel Suspension Kit , Wire Suspending System





The LED Panel suspension kit for use with many ultra slim LED panel lights allowing the panel to

be hung from a ceiling. Ideal for situations when recessed mounting is not possible,

or for an ultra modern appearance.





This suspension kit for LED panels is one of 4 steel tensioners from the whole set that

allow us to hang panels 1~2 metres from the ceiling.

It can be used for 30x30cm panels, 60x60cm panels and 60x30cm panels.

* This suspension kit can de adjusted up to 2 metres.

* For 120x60cm and 120x30cm panels, adding 2 extra tensioners is recommended.





This Wire Suspenison Kit is designed for hanging  small and light object,

2 metres of this Wire suspension complete with fixings to allow Panel Lights to be suspended.



Can be mounted on Panel or mounted onto surface mount frames.





Description



1. Material Brass+Stainless Steel Wire

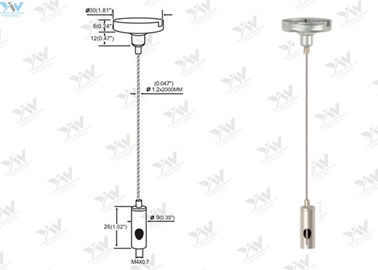

2. Size Same as the drawing
3. Cable Diameter and Length Ø1.2*2000mm;Or Customize
4. Finishing Color Satin/Silver/Customize
5. Application

Ideal for contractors such as builders, shopfitters, electricians,

sign installation companies or acoustic ceiling installers.

6. Safe Working Load 30KG(For Reference only)
7. Content

1 * Adjustable Ceiling Attachment,adjust the main cable length;

1 * Adjustable cable gripper with external thread,fixed to the application;

1* Stainless Steel wire;

8. Advantages

The ceiling suspension kit is easily fitted to a ceiling or underneath

any horizontal surface,using the screw and plug kit provided

(depending on the surface). You must ensure that the surface

you are screwing into is capable of holding the weight of the item

you are intending to hang.





Confused about how to select your  hanging system?




1. Choose a Suspension Point
Your system can be ceiling or wall mounted, with applications

hanging freely or tensioned between two fixed points;


2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters

and lengths ranging from 1.0mm~3.0mm;


3. Select a Gripper
A range of designs and options, all with self gripping technology,

offer a secure and elegant solution for any fine art installation.







Suspension kits with adjustable gripper and Stainless Steel Wire,

Can be used to hang Linear Lights,LED Panels and many other products,

Offer the perfect solution for the suspension of the fixtures.


Stainless steel wire suspension kits for use with LED Panels and many other products,

Allow the panel to be hung from a ceiling. Ideal for situations when recessed mounting

is not possible, or for an ultra modern appearance.



Satin Color Lighting Wire Suspension Systems For Hanging Panel Lights
