Jonwin Limited
(Yingwei Lighting Accessory Co.,Ltd. )
Make The Installation Easy And Flexible!
|
Product Details:
Payment & Shipping Terms:
|

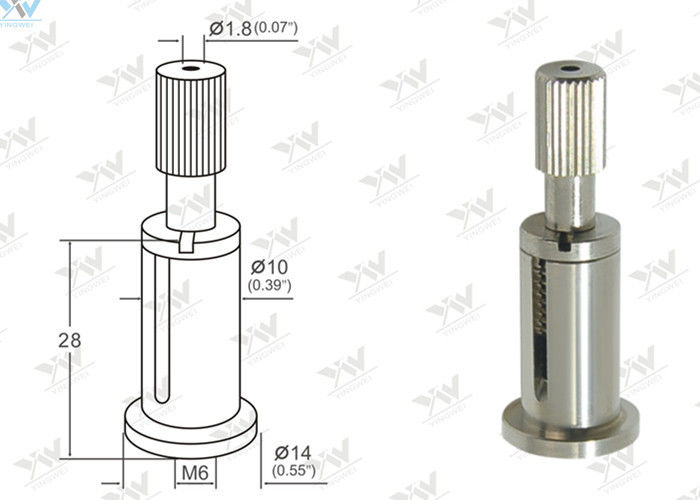

| Material: | Brass | Size: | Φ10*28mm |
|---|---|---|---|
| For Cable Diameter: | Ø0.8~Ø1.2mm | Thread Size: | M6 Internal Thread |
| Finish Color: | Nickel/Chrome/Customized | Cable Exit: | Side Exit |
| Plunger Diameter: | Ø1.6mm | Others: | OEM/ODM |
| High Light: | cable bottom exit gripper,steel wire gripper |
||
Security Cap Lock Cable Grippers Brass Material Adjustable For Suspension
This cable gripper is made from nickel/Chrome plated copper(brass) with a security cap,
It is suited to indoor applications with small diameter wires 0.8~1.2mm.
Other sizes and styles can be supplied as well,
Contact us for your requirements,or send us your drawing for OEM.
Lock Cable Grippers are unique, self-locking, completely adjustable devices,
designed to securely lock onto a large range of 7×7 and 7×19 stranded aircraft cables.
We offers several grippers in different diameters and screw sizes.
Which can be used in many mounting applications including but not limited to
j-box, drop ceiling, masonry and unistrut projects.
Our Standard Grippers are able to mount directly to walls, floors and ceilings.
This product is made from nickel plated steel and features a pressure release
mechanism to build a strong display system.
This cable gripper features a safety lock to provide extra security.
Description
| 1. Material | Brass |
| 2. Size | Φ10*28mm / Customized |
| 3. For use with Cable | Ø0.8~Ø1.2mm |
| 4. Finishing Color |
Chrome / Black/ Customized |
|
5. Application |
It is perfect for Hanging Graphic Displays, Suspend Signage , Lighting Systems , Suspended Fixtures and other objects. |
| 6. Safe Working Load | 30KG,depends on the cable diamter work with |
| 7.How It Works
|
Lock Cable Grippers are sophisticated in design but simple to use: Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.
While there is any weight at all on the gripper, the plunger cannot be depressed.An optional “safety nut” or “safety cap” can be added to completely lock the mechanism in both directions. The greater the weight, the stronger it grips.
|
Advantages
* Safe, reliable and compliant
* Time-saving
* Simple one hand use without tools
* Infinitely adjustable
If you have a project that involves unusually sloped, curved or high ceilings, our aircraft cable gripper system may be the solution for you. It is affordable, flexible and easy to install.
To find out more about this more solutions for your hanging system,
Please feel free to contact our sales team.
FAQ
PriceTerms:
FOB Price:For ocean shipment,FOB Shenzhen;
EXW:Exclude all the freight cost,delivery in factory of Yingwei;
Both the prices exclud taxes,as well as shipping and handling charges.
