M5 Threaded Light Hanging Systems / Suspension Light Fixture Nickel Color

M5 Threaded Light Hanging Systems / Suspension Light Fixture Nickel Color
M5 Threaded Light Hanging Systems / Suspension Light Fixture Nickel Color

Large Image :  M5 Threaded Light Hanging Systems / Suspension Light Fixture Nickel Color

Product Details:
Place of Origin: Dongguan,China
Brand Name: YW
Model Number: YW-86066
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: Negotiable
Packaging Details: Export Carton- 35*25*18cm
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Detailed Product Description

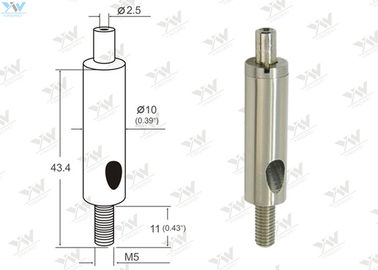

Material: Brass Size: Φ10*43.5mm
For Cable Diameter: Ø1.2~Ø1.5mm Thread Size: M5 External Thread
Finish Color: Nickel/Chrome Cable Exit: Side Exit
Plunger Diameter: Ø2.5mm Customize: OEM/ODM
Highlight:

cross cable grippers

,

aircraft cable fittings

M5 Threaded Adjustable Cable Gripper Brass Material With Nickel Color



Adjustable Cable Grippers help to provide the ideal suspension solution for

sorts of different objects,such as heating, ventilation and air conditioning (HVAC),

mechanical and electrical, lighting, acoustics and signage.



Used extensively throughout the building, architectural, lighting and agricultural sectors,

Suspension Kits with djustable cable grippers are the perfect alternative to the

traditional threaded rod solution and are engineered with simplicity in mind,

allowing for significant savings in time and labour during installation.





They prove very easy to use, they have a unique clutch braking mechanism that grips within

the gripper, thus creating a very easy, practical, simple system that can be used time-and-time again!

What is the most important,they require no tools to adjust;

up or down, down or up – as often as you like.



They are made from nickel/Chrome plated copper(brass) and best

suited to indoor applications with small diameter wires 1.2~1.5mm.

Other sizes and styles can be supplied as weel,

Contact us for your requirements,or send us your drawing for OEM.





Description



1. Item Name M5 Male Thread Cable Gripper
2. Material Brass
3. Size Φ10*43.5mm Customized
4.Plunger Diameter Ø2.5mm
5. For use with Cable Ø1.0~Ø1.5mm
6. Finishing Color Chrome/Nickel Customized
7. Application

Use for quick and easy suspension of HVAC, mechanical and electrical services, pipework and lighting from a variety of different substrates.

8. Safe Working Load 50KG,depends on the cable diamter work with
9. How It Works

How It Works


Aircraft Cable Grippers are sophisticated in design but simple to use:

Insert the cable into the plunger and slide the gripper to the desired position.

Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.


The 3--ball gripping mechanism is spring-loaded and allows the gripper to move freely up the cable. It cannot move down unless the plunger is depressed.



While there is any weight at all on the gripper, the plunger cannot be depressed.An optional “safety nut” or “safety cap” can be added to

completely lock the mechanism in both directions.

The greater the weight, the stronger it grips.





The wire grippers have more than the advantages as below:



1. The fastest locking device available for quick and easy suspension,

Supplied in ready-to-use,allows quick installation and instant adjustment;
2. Tool Free:Setting and Adjustable without utilizing tools;
3. Self-Locking:User Friendly and dismountable;
4. The finest way to suspend lighting fixtures available;
5. Low cost and competitively priced for use in industrial and architectural lighting applications;
6. Made of Brass material with plated,rustless;
7. Compact design,easy taking and delivery.





FAQ



Sample Charge:

We provides a limited amount of product samples, usually free of charge;

Buyer is to provide a shipping account number for freight collected.

NOTE:Multiple samples may be not available.


Sample Time: 3 ~ 5 days



Payment Terms:



30% deposit by T/T or Western Union, to confirm the order and start production,

Balance should be arranged before the delivery.
