Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343

Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343
Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343

Large Image :  Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343

Product Details:
Place of Origin: GUANGDONG, CHINA
Brand Name: YW
Certification: CE RoHS
Model Number: YW-86343
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 PCS a Month
Detailed Product Description

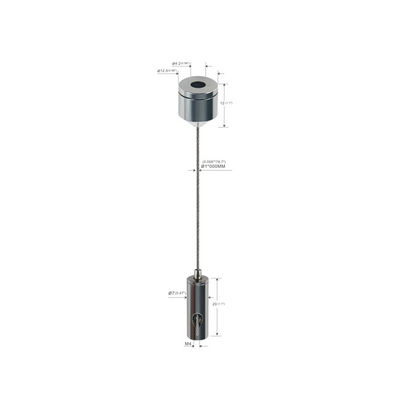

Item Name: YW-86343 Material: Brass
Ceiling Size: 12*12mm Wire Diameter: 1.0mm
Gripper Size: 7*20mm MOQ: 500pcs
Wire Length: 1000mm, Customized Lead Time: 8-15 Business Days
Sample: Free Sample Available For Existing Dimension
High Light:

Chrome PlatedCable Suspension System

,

Brass Material Cable Suspension System

,

1.0mm Dia Wire Suspension Kit

Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343



Specification:



 1.Main Wire Diameter

 ∅1.0mm(0.059”)
 2.Construction  1*7,7X7,1*19,7*19 etc
 3.Material  Stainless steel / Copper
 4.MOQ  500pcs
 5.Length  1000mm, as the requirement
 6.Type  Single leg
 7.Surface treatment  Chrome, Nickel, Black, White, and Silver
 8.End parts of fittings  Eyelets terminals
 Screws
 Clips
 Hooks
 All kinds of grippers
 Ceiling attachment
 locking screws
 A large selection of end fittings, including eye bolts, links, springs,
 hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped eye,
 handles, etc
 9.Lead time  10-15 workdays if there were enough material in stock
 10.Sample

 Free sample available if all of the dimensions same as our existing one




Description:



The hanging kit allows you to hang your light from the ceiling or from the wall bracket above the aquarium. The cable kit is well constructed and designed for quick suspension of lighting. Compared with the standard method in the past, it reduces the installation time and ensures more reliability and safety. We offer a wide range of cable suspension kits to hang linear lights, decorative lights, lighting panels, highway lights, track lights, etc. We are in the process of customizing the suite according to customer requirements.

Lighting grippers offer value, versatility, and field adjustability. Featuring the latest technology in ceiling fixture suspension, our grippers are both durable and flexible. Fixtures are raised and lowered on the suspension wire for fast, cost-effective installation and easy adjustment, with significantly lower labor cost. Crafted with internal stainless steel ball bearings, these grippers offer the integrity that lighting OEMs require. Available as a component or provided with wire and ceiling attachment as a complete assembly





What is the difference between 1x19, 7x7, and 7x19 configurations?​



* The 1x19 cable is slightly stronger than the other cables but is the least flexible. It is also the nicest looking cable due to the fewer strands of wire that make it up.
* The 7x7 cable is semi-flexible, has a lesser breaking load than compared to the 1x19, but greater than 7x19.
* The 7x19 cable is the most flexible, which allows it to loop back on itself without kinking. It has the lowest breaking load of 20kg.
* If you are using the wire for balustrading; in particular in conjunction with fittings that require the use of a hydraulic swage, either of the 3 wires wire will be fine; but if you are using fittings that need the cable to wrap around a thimble, then the more flexible 7x7 or 7x19 cable is a much easier option for this purpose.





Advantage:



Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 0  Suspension kit for slim frame LED edge light panels.

Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 0Easy installation that does not require a professional.

Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 0Cable display systems are ideal for the home, museums, art galleries, public buildings, corporate identity, or wherever visual communication is important.

Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 0Secure lock that screws into the ceiling while the other screws into the premade holes on the side of the edge light panel.

Chrome Plated Ceiling Light Cable Suspension System Brass Material YW86343 0This Stainless Steel Rope Suspension Kit contains all the necessary components for a successful Linear LED Light Fitting installation. It has 1 meter of stainless steel rope plus all the screws and fixings you’ll require.





Our Company:



Yingwei specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.

The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.

The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray tests and tensile tests at the factory to ensure the quality and safety of the products.
