Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271

Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271
Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271 Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271 Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271 Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271 Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271 Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271

Large Image :  Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271

Product Details:

Place of Origin: GUANGDONG, CHINA
Brand Name: YW
Certification: CE RoHS
Model Number: YW-86271

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 2,000,000 PCS a Month
Detailed Product Description

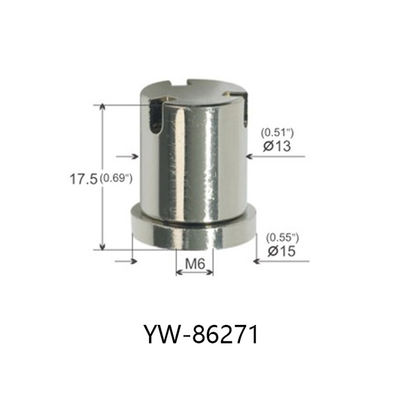

Item Name: YW-86271 Size: ∅15*17.5mm
Material: Brass / Stainless Steel / Steel Diameter: 15mm
Lead Time: 8-15 Business Days Surface Color: Silver/Nickel/Chrome/Black/White
Application: Light Fixture, Hanging Systems, Picture Hanging Alloy: None -Alloy
MOQ: 500pcs Sample: Free Sample Available For Existing Dimension
OEM/ODM: Acceptable
High Light:

Cable Hanging Hardware Connector

,

Cable Hanging Three Branch Outlet

 Ceiling Connector Three Branch Outlet Hardware Nickel Plated YW86271





Description:



We provide instant tool-less height adjustments for drop ceilings, light fixtures, displays, and signs. Based in China, the company offers an array of products, such as cable couplers, cross cable, power feed, and bottom exit. Its various coupler styles have the ability to attach J-boxes, sheetrock, masonry, and wood, among others. In addition, We offer power cords, diecast ends, cable hardware, and bulk cable. The company's cable gripper styles provide various hanging installation options.





Specification:



 Material   Brass  Type   Round
 MOQ   200 PCS  Brand Name   YW
 Item   Ceiling Attachment  Carton Size   35*25*18cm
 Size   ∅*15mm/Customized  Lead Time   8-15 workdays
 Thread   M6 thread  Payment Terms

  T/T, Western Union, Paypal




Application:


1. On a drywall or wood ceiling, simply use an anchor (drywall) or screw to install part one of the connector. Then put the grip lock cable through the second part of the connector. The "stop" on the connector will stop the wire from falling out.
2. Screw this second part of the connector to the first part already installed in the ceiling.
3. Now you are ready to install the slider to the wire and hang your light fixtures.

4. These adjustable sign hanger kits can also be used in art installations, in shop window displays as well as in industrial applications such as suspending safety signs.




Feature:



  • Extremely rapid installation
  • Reusable for a future project
  • Very compact design & strong termination
  • No special tools needed. Simply fit & adjust by hand!
  • Will accommodate cable from 0.8mm-1.25mm.
  • Use for light suspension applications, as a stop for example for light shelves.
  • Nickel-plated brass

The three legs hanger part is designed for architectural lighting suspensions where aesthetics are important and offers simple one-handed adjustment and a range of feet options to accommodate many types of luminaires.





Easy to use



A.Insert the cable into the gripper. Always insert the cable through the pin unless otherwise stated.

B.Adjust the gripper up. When you let go of the gripper it will automatically lock itself on the cable.

C.Press the pin and adjust down. When you press the pin the lock opens and the gripper slides freely up and down the cable. Release the pin to lock the gripper again.





What is the difference between 1x19, 7x7, and 7x19 configurations?


The 1x19 cable is slightly stronger than the other cables but is the least flexible. It is also the nicest looking cable due to the fewer strands of wire that make it up.
The 7x7 cable is semi-flexible, has a lesser breaking load than compared to the 1x19, but greater than 7x19.
The 7x19 cable is the most flexible, which allows it to loop back on itself without kinking.





Warm tip


The max load-bearing of the according to the cable, please don't use it in the stuff of exceeding weight to avoid danger. If you want to try, Please be careful.
