20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252

20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252
20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252 20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252 20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252 20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252 20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252 20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252

Large Image :  20mm Dia Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252

Product Details:
Place of Origin: GUANGDONG, CHINA
Brand Name: YW
Certification: CE RoHS
Model Number: YW-86252
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 2,000,000 PCS a Month
Detailed Product Description

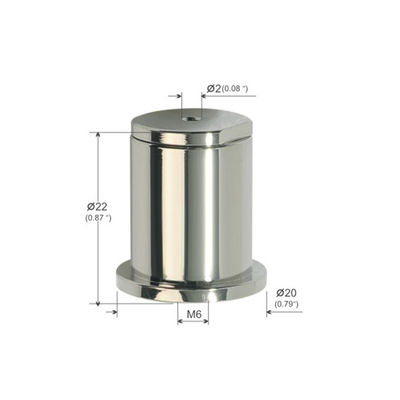

Item Name: YW-86252 Size: ∅20*22mm
Material: Brass / Stainless Steel / Steel Diameter: 20mm
Surface Color: Nickel/Chrome/Black/White Sample: Free Sample Available For Existing Dimension
Application: Light Fixture, Hanging Systems, Picture Hanging MOQ: 300pcs
Lead Time: 8-15 Business Days OEM/ODM: Acceptable
High Light:

20mm Dia Ceiling Cable Hanging System

,

M6 Female Thread Cable Hanging System

,

Nickel Plated Ceiling Cable Hanging System

Ceiling Cable Hanging System M6 Female Thread Nickel Plated YW86252





Specification:



 Material   Brass  Type   Long cylindrical
 MOQ   300 PCS  Brand Name   YW
 Item   Ceiling Attachment  Carton Size   35*25*18cm
 Size   ∅20*22mm/Customized  Lead Time   8-15 workdays
 Thread   M6 female thread  Payment Terms

  T/T, Western Union, Paypal




Description:



1. The cable coupler is fixed to the hard ceiling by screw, non-adjustable.

2. Many Ceiling Attachment styles allow you to attach anything you want to hang, working with different cable gripper styles allows for limitless hanging installation options.





Application:



  • The steel cable is applied to lighting fixtures, it can adjustable in height and allows for the widest variety when suspending LED panels from ceilings.
  • These adjustable sign hanger kits can also be used in art installations, in shop window displays as well as in industrial applications such as suspending safety signs.
  • The ceiling suspension kit is easily fitted to a ceiling or underneath any horizontal surface, using the screw and plug kit provided (depending on the surface). You must ensure that the surface you are screwing into is capable of holding the weight of the item you are intending to hang.
  • These various fittings and sets are also available as individual components - ideal for contractors such as builders, shopfitters, electricians, sign installation companies, or acoustic ceiling installers.





Advantages:



  • Extremely rapid installation
  • Reusable for a future project
  • Very compact design & strong termination
  • No special tools needed. Simply fit & adjust by hand!
  • Will accommodate cable from 0.8mm-1.25mm.
  • Use for light suspension applications, as a stop for example for light shelves.
  • It can match directly with the cap or with the cable gripper.





Materials & Finishes


Ceiling Attachments are made of nickel / Chrome-plated brass with a few exceptions.

Internal mechanisms are comprised of brass and stainless steel.

Satin-chromed and other finishes are available upon request.



IMPORTANT: It is essential to check that the top ceiling fixings are strong enough to take the weight of the items being displayed while allowing for the tension in the cables.



Affix ceiling attachment to ceiling:



- for wooden ceilings use a wood screw.

- for cavity ceilings use a spring toggle bolt.

- for solid ceilings use a rawl plug and screw.



How To Installation:



1: Insert the cable into Gripper hooks.
2: Pass cable through or around the anchor point.
3: Insert cable back into Looping Gripper.
ADJUSTMENT: Remove load from cable, depress plunger & adjust cable height.
Note: Gripper hook must maintain a minimum 500 distance from all suspended objects or support structures.





If you have a project that involves unusually sloped, curved, or high ceilings, our aircraft cable gripper system may be the solution for you. It is affordable, flexible, and easy to install.

To find out more about this more solutions for your hanging system,

Please feel free to contact our sales team.
