Make The Installation Easy And Flexible!
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Brass | Size: | Φ9*27.5mm |
|---|---|---|---|
| For Cable Diameter: | Ø1.0~Ø1.5mm | Thread Size: | M5 Tapped |
| Finish Color: | Nickel/Chrome/Customized | Cable Exit: | Side Exit |
| Plunger Diameter: | Ø2.0mm | Others: | OEM/ODM |
| High Light: | cable side exit gripper,adjustable wire gripper |
||

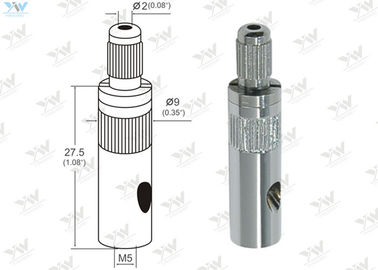

Cable Side Exit Brass Cable Grippers Nickel Plated Adjustable With Safety Lock
This is a cable gripper with a M5 tapped thread at the bottom,
It is to adjust the height of a fixture without utilizing tools.
For use with 1mm to 1.5mm cables.
Cable exits out the side of gripper, commonly used for suspension systems.
The overall size of the product is Φ9mm*27.5mm,and can be customized too.
It is made from copper(brass) material,can be plated in Nickel,Chrome finishing color,
As well as Black and White finish upon customer requirements.
This product features a safety lock to provide extra security.
Advantages
* Safe, reliable and compliant
* Time-saving
* Simple one hand use without tools
* Infinitely adjustable
Brass Cable Grippers are unique, self-locking, completely adjustable devices,
designed to securely lock onto a large range of 7×7 and 7×19 stranded aircraft cables.
The gripper has a self locking mechanism that saves time and effort when suspending signs,
panels and graphics from a ceiling. A clutch release button makes levelling up a breeze.
The height is adjusted at the sign rather than at the ceiling - much more convenient!
Description
| 1. Material | Brass |
| 2. Size | Φ9*27.5mm / Customized |
| 3. For use with Cable | Ø1.0~Ø1.5mm |
| 4. Finishing Color |
Chrome / Nickel / Customized |
|
5. Application |
Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures
|
| 6. Safe Working Load | 40KG,depends on the cable diamter work with(For reference only) |
| 7. Advantages
|
1. The brass Cable Grippers help to provide the ideal suspension solution for sorts of different objects,such as heating,ventilation and air conditioning (HVAC),mechanical and electrical, lighting, acoustics and signage.
2. They prove very easy to use, they have a unique clutch braking mechanism that grips within the gripper, thus creating a very easy, practical, simple system that can be used time-and-time again!
3. What is the most important,they require no tools to adjust, up or down, down or up – as often as you like. |
How It Works
Aircraft Cable Grippers are sophisticated in design but simple to use:
Insert the cable into the plunger and slide the gripper to the desired position.
Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip
and move the gripper to a new position. Release the plunger to lock.
The 3--ball gripping mechanism is spring-loaded and allows the gripper to move
freely up the cable. It cannot move down unless the plunger is depressed.
While there is any weight at all on the gripper, the plunger cannot be depressed.
An optional “safety nut” or “safety cap” can be added to completely lock the mechanism
in both directions. The greater the weight, the stronger it grips.
