Make The Installation Easy And Flexible!
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Brass | Size: | Φ16*16mm |
|---|---|---|---|
| For Cable Diameter: | Ø1.0~Ø2.0mm | Finish Color: | Chrome/Customized |
| Cable Exit: | Bottom Exit | Plunger Diameter: | Ø2.2mm |
| Others: | OEM/ODM | ||
| High Light: | cable bottom exit gripper,steel wire gripper |
||

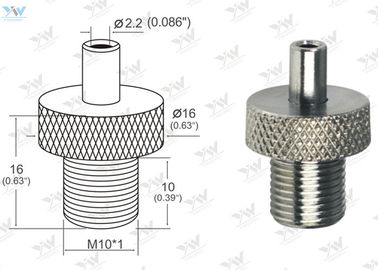

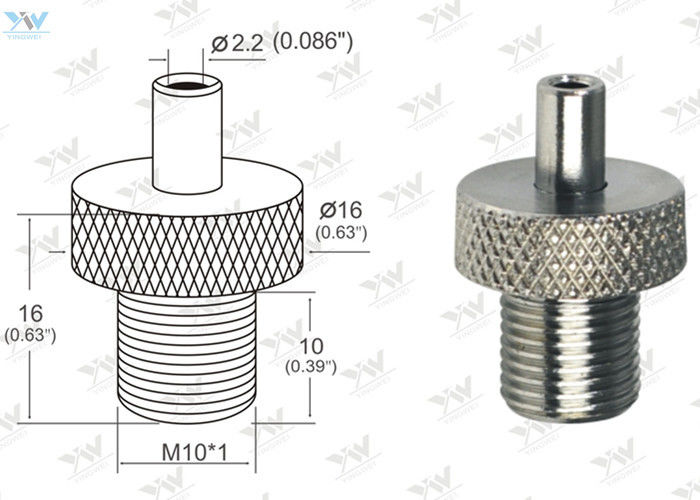

Brass Material Adjustable Lock Cable Grippers With Key Flange Cap
We have a variety of cable bottom exit and self-gripping gripper styles in our
hanging system hardware line.
Description
1. Item Name: Lock Cable Grippers With Key Flange Cap
2. Material: Brass
3. Measurement: Φ16*16mm
4. Thread Size: M10 Male Thread
5. Finishing Color:Chrome; Or Customize
6. Application:
Grippers can be used in many mounting applications including but not limited to j-box,
drop ceiling, masonry and unistrut projects.
7. Safe Working Load:10KG(For reference only)
| MATERIAL | MEASUREMENT | FINISHING COLOR |
| BRASS |
Φ0.63'' * 0.63'' (Φ16 * 16MM) |
CHROME PLATED |
What is A Gripper?
A Cable Gripper is an adjustable fastener that automatically grips and locks to any position on
an aircraft cable using an internal, spring-loaded 3-ball gripping mechanism. This allows the
Gripper to move freely up the cable but not down unless the mechanism is released.
What types of Cable Grippers are available?
There’s a wide variety, but there are two distinct types. The Straight-Thru’ or standard Gripper
allows the cable to exit through the Gripper’s thread into the fixture. The Side-Cable-Exit Gripper
allows the cable to exit the Gripper from the side of the body before the Gripper enters the fixture, eliminating the possibility of a short circuit.
What are Grippers made of?
Most are made of nickel-plated brass. The internal mechanism is stainless
steel and brass.Other finishes include satin , chrome and black zinc.
Do I need tools to adjustable the Gripper?
No, the Gripper mechanism is released by pressing the plunger manually.
Do I need a Safety Nut?
Most Grippers have optional “safety nuts” or “safety caps” to lock the mechanism off in both directions.
Do I need tools to adjustable the Gripper?
No, the Gripper mechanism is released by pressing the plunger manually.
Do I need a Safety Nut?
Most Grippers have optional “safety nuts” or “safety caps” to lock the mechanism off in both directions.
Are locknuts provided with Grippers?
Generally no, but Grippers with metric threads are supplied with a corresponding bolt or lock nut.
What components do I need to hang my fixtures?
You will need a ceiling attachment (cable coupler or connector), a cable with a terminal (stop sleeve) and a Cable Gripper, normally placed at the fixture. You may also need ceiling canopies and power cord.
The wire grippers have more than the advantages as below:
1. The fastest locking device available for quick and easy suspension,
Supplied in ready-to-use,allows quick installation and instant adjustment;
2. Tool Free:Setting and Adjustable without utilizing tools;
3. Self-Locking:User Friendly and dismountable;
4. Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures;
5. Compact design,easy taking and delivery.
