Nickel Finish Aircraft Cable Fixture Hangers And M3 Threaded Swivel Joint

Nickel Finish Aircraft Cable Fixture Hangers And M3 Threaded Swivel Joint
Nickel Finish Aircraft Cable Fixture Hangers And M3 Threaded Swivel Joint

Large Image :  Nickel Finish Aircraft Cable Fixture Hangers And M3 Threaded Swivel Joint

Product Details:
Place of Origin: Dongguan,China
Brand Name: YW
Model Number: YW-86114
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: Negotiable
Packaging Details: Export Carton- 35*25*18cm
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Detailed Product Description

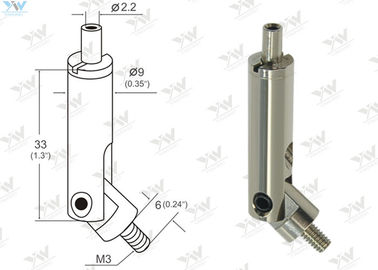

Material: Brass Size: Φ9*33mm
For Cable Diameter: Ø1.0~Ø2.0mm Thread Size: M3 External Thread
Finish Color: Nickel/Chrome/Customized Cable Exit: Side Exit
Plunger Diameter: Ø2.2mm Customize: OEM/ODM
High Light:

cable side exit gripper

,

adjustable wire gripper

Nickel Finished Brass Cable Grippers With M3 Threaded Swivel Joint





This brass cable gripper is removeable with a M3 threaded swivel joint,

It can be plated in Nickel,Chrome finishing color,

As well as Black and White finish upon customer requirements.



It is suited to applications with diameter wires 1.0~2.0mm.

Other sizes and styles can be supplied as well,

Contact us for your requirements,or send us your drawing for OEM.





Grippers can be used in many mounting applications including but not

limited to j-box, drop ceiling, masonry and unistrut projects.
They can be repositioned without damaging the cable and no tools are necessary.

Just push the head and slide it.
One hand is sufficient : the grippers are installed wholly without tools and are infinitely adjustable





Description



1. Item Name Brass Cable Grippers with 180 degree swivel
2. Material Brass
3. Size Φ9*33mm / Customized
4. Plunger Diameter Φ2.2mm
5. For use with Cable Ø1.0~Ø2.0mm
6. Finishing Color Chrome/Nickel,or  Customized
7. Application

The cable grippers are suited for a wide variety of applications,
Such as Lighting Products,Signs,Dispalys, Artwork, Graphics and many other items,and offer the perfect solution for the suspending system.
Arguably the finest way to suspend fixtures available!

8. Safe Working Load 30KG,depends on the cable diamter work with(for reference only)
9. Advantages

1.The brass cable grippers offer a secure and elegant solution

for any fine art installation,as well as Lighting Products,

Signs,Dispalys, Graphics and many other items;

2. Radically reducing installation time and eliminating human error;

3. Easy to adjust cable length,easy to release.

4. Low cost and competitively priced for use in industrial and architectural lighting applications;

5. Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures;

6. Supplied as Gripper Only or Gripper with Cables in different length.





Brass Cable Grippers are unique, self-locking, completely adjustable devices,

designed to securely lock onto a large range of 7×7 and 7×19 stranded aircraft cables.







The cable grippers slide up and down the cable for the vertical height adjustment,all tool-free!

They self lock on the cable and offer the perfect solution for the suspension of:

Lighting Products,Signs,Dispalys, Artwork, Graphics, shelving and many other items,

Radically reducing installation time and eliminating human error.





FAQ




Shipping: DHL, UPS, FedEx and TNT Express, Airline and Ocean shipping.

All shipments originated by us will be freight collected,or those charges will be billed to the customer.

It is also possible to ship via Collect or 3rd-Party using your own shipping account.





Packing: 1 pcs / polybag; Carton/Pallet
