Mini Lock Cable Grippers Nickel Plated Brass Material With a Base

Mini Lock Cable Grippers Nickel Plated Brass Material With a Base
Mini Lock Cable Grippers Nickel Plated Brass Material With a Base

Large Image :  Mini Lock Cable Grippers Nickel Plated Brass Material With a Base

Product Details:
Place of Origin: Dongguan,China
Brand Name: YW
Model Number: YW-86081
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: Negotiable
Packaging Details: Export Carton- 35*25*18cm
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Detailed Product Description

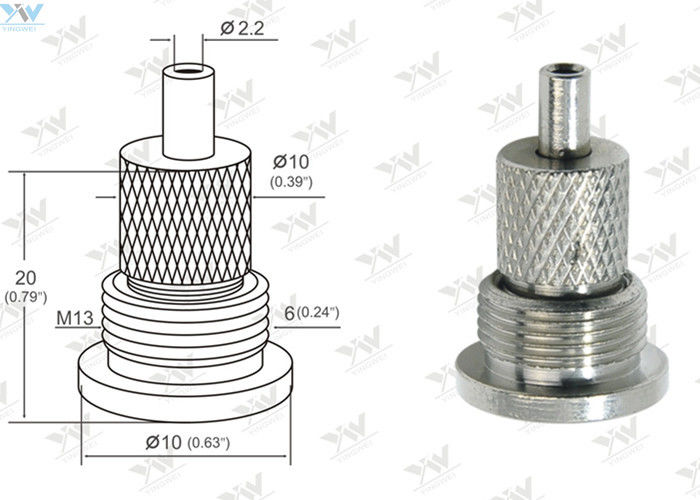

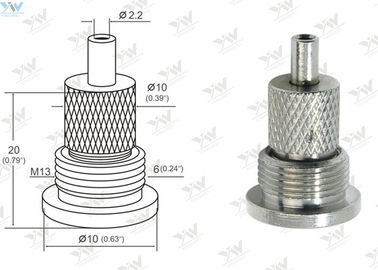

Material: Brass Size: Φ10*20mm
For Cable Diameter: Ø1.0~Ø1.2mm Thread Size: M13 External Thread
Finish Color: Nickel/Chrome/Customized Cable Exit: Side Exit
Plunger Diameter: Ø2.2mm Others: OEM/ODM
High Light:

cable bottom exit gripper

,

steel wire gripper





Mini Lock Cable Grippers Nickel Plated Brass Material With a Base





We offers several grippers in different diameters and screw sizes.

Grippers can be used in many mounting applications including but not limited

to j-box, drop ceiling, masonry and unistrut projects. They can be repositioned

without damaging the cable and no tools are necessary. Just push and slide it.

One hand is sufficient : the grippers are installed wholly without tools and are infinitely adjustable.



* Safe, reliable and compliant

* Time-saving

* Simple one hand use without tools

* Infinitely adjustable



This cable gripper is made from brass material plated in Nickel color,

With M13 external threaded and a Ø10mm base plate.

and best suited to indoor applications with small diameter wires 1.0~1.2mm.

Other sizes and styles can be supplied as well,

Contact us for your requirements,or send us your drawing for OEM.



Mini Lock Cable Grippers Nickel Plated Brass Material With a Base 0







Description



1. Material Brass
2. Size Φ10*20mm / Customized
3. For use with Cable Ø1.0~Ø1.2mm
4. Finishing Color

Chrome / Black/ Customized

5. Application

With our many Lock Cable Gripper styles you can hang anything:

Drop Ceilings,Light Fixture Pendants, Signs, Displays, Shelves,

Picture Frames and more.

6. Safe Working Load 20KG,depends on the cable diamter work with
7. Cable Gripper      Design

Within each cable gripper is a plunger that a cable slides through.

There are three balls that surround the outside diameter of the cable

as it passes through the gripper. When weight is applied to the gripper

when mounted, the tension forces the balls to grab the cable in a pinching movement.

In normal operation the more the tension, the more the gripping. Some grippers come with a safety nut that locks the movement in both directions eliminating the potential for a release if the plunger is accidentally depressed by an end user.



Used extensively throughout the building, architectural, lighting and agricultural sectors,

Suspension Kits with adjustable cable grippers are the perfect alternative to the

traditional threaded rod solution and are engineered with simplicity in mind,

allowing for significant savings in time and labour during installation.



Cable Kits provide a complete solution for hanging fluorescent direct/indirect type fixtures.

Kits come complete with a suitable gripper for tool-less height adjustment of fixture as well

as hardware appropriate for the ceiling type and are available with cord to supply power to fixtures.



We create custom kits quickly and efficiently for lighting fixture installations.

One size does not fit all, tap into our knowledge and save time and money by creating kits

with parts your team needs. We can customize the kit mounting hardware to the job’s ceiling

type saving your customer, labor with an easier install.
