Adjustable Power Feed Cable Suspension Kits / Steel Wire Hanging Systems

Adjustable Power Feed Cable Suspension Kits / Steel Wire Hanging Systems
Adjustable Power Feed Cable Suspension Kits / Steel Wire Hanging Systems

Large Image :  Adjustable Power Feed Cable Suspension Kits / Steel Wire Hanging Systems

Product Details:
Place of Origin: Dongguan,China
Brand Name: YW
Model Number: YW-86055
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: Negotiable
Packaging Details: Export Carton with size of 35*25*18cm
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Detailed Product Description

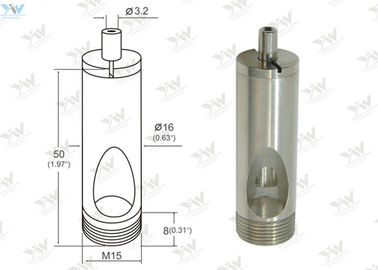

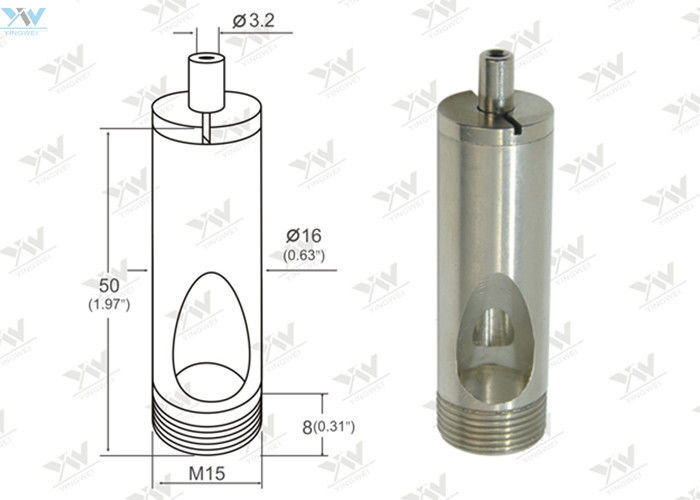

Material: Brass Size: Φ16*50mm
For Cable Diameter: Ø1.0~Ø2.0mm Thread Size: M15 External Thread
Finish Color: Nickel/Chrome/White/Black Cable Exit: Side Exit
Advantage: Power Feed Customize: OEM/ODM Acceptable
High Light:

wire cable grippers

,

aircraft cable hanging kit




Adjustable Power Feed Aircraft Cable Grippers With Nickel / CNC Machined Components




We produce high quality Brass CNC machined components as per customers requirements

based on their drawings and provided work samples.


Our integrated team works with full efforts to give cent percent result to the customers products maintaining cost efficiency rejections.



* Shape of the metal casting (drawing or pattern).

* Number of parts.

* Supplementary requirements (test methods and acceptance criteria).

* Material specification and grade.



For many designers, the final piece of this puzzle can be the most difficult.

What material specifications are appropriate for machining the Brass Parts,

and how should they be delivered to you, depends how accurate information

is provided by the customer.We assure to give the best quality output in terms

of material and service.



The cable grippers slide up and down the cable for the vertical height adjustment,all tool-free!
They self lock on the cable and offer the perfect solution for the suspension of:
 Lighting Products,Signs,Dispalys, Artwork, Graphics and many other items,
 Radically reducing installation time and eliminating human error.


How It Works
Aircraft Cable Grippers are sophisticated in design but simple to use:
Insert the cable into the plunger and slide the gripper to the desired position.
Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip
and move the gripper to a new position. Release the plunger to lock.
The 3--ball gripping mechanism is spring-loaded and allows the gripper to move
freely up the cable. It cannot move down unless the plunger is depressed.

While there is any weight at all on the gripper, the plunger cannot be depressed.
An optional “safety nut” or “safety cap” can be added to completely lock the mechanism
in both directions. The greater the weight, the stronger it grips.


Description

1. Material Brass
2. Size Φ16*50mm
3. For use with Cable Ø1.0~Ø2.0mm
4. Finishing Color Chrome/Black/Nickel/White
5. Application Suspension System for Lighting Products,Mechanical,Art and Displays etc.
6. Safe Working Load 80KG,depends on the cable diamter work with
7. Advantages

1. Time-Saving:Allows quick installation and instant adjustment;
2. Tool Free:Setting and Adjustable without utilizing tools;
3. Self-Locking:User Friendly and dismountable;
4. The finest way to suspend lighting fixtures available;
5. Low cost and competitively priced for use in industrial and architectural lighting applications;
6. Made of Brass material with plated,rustless;
7. Compact design,easy taking and delivery.
8. Power Feed


If you have a project that involves unusually sloped, curved or high ceilings, our aircraft cable gripper system may be the solution for you. It is affordable, flexible and easy to install.
To find out more about this more solutions for your hanging system,
Please feel free to contact our sales team.
